CXS1511025-R06W0.7-F1

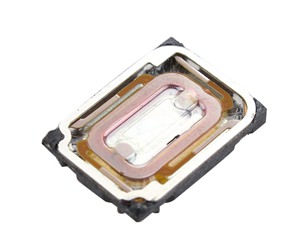

| 型號： | Miniature SPEAKER |

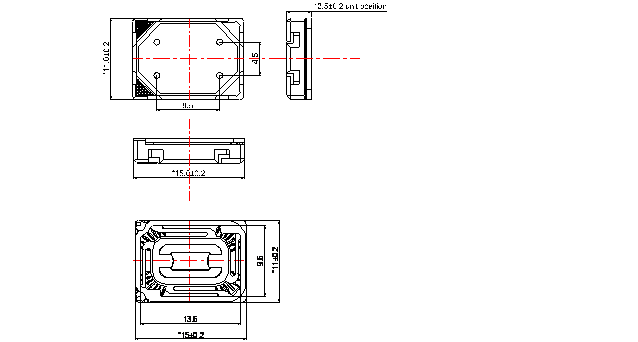

| 規格： | 15*11*2.5mm,6ohm/0.7W |
| 描述： | 彈片式喇叭 薄膜喇叭 超薄喇叭 miniature speaker |
|
CXS1511025-R06W0.7-F1 |
|
| Rated Input Power. | 0.7W |
| Rated Impedance. | 6Ω ± 15% |

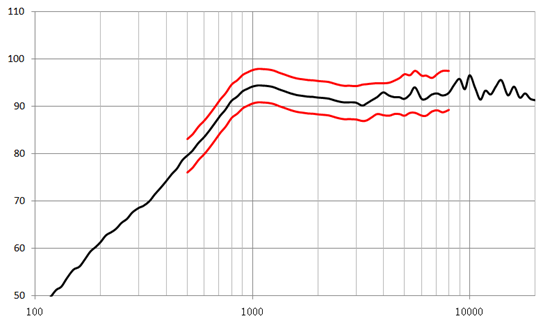

| Sound Pressure Level. | 92dB(0.7W0./1m) ± 3 dB At 2.0K Hz(1.0cc box) |
| Resonance Frequency (Fo). | 550±20%Hz (in free air) 850±20%Hz (1.0cc box) |
| Frequency Range. | F0~20kHz. |
