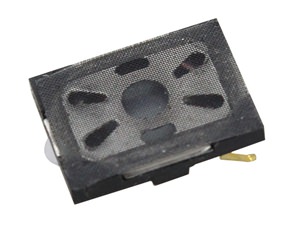

CXS1511032-R08W0.7-F22
| 型號： | Miniature SPEAKER |

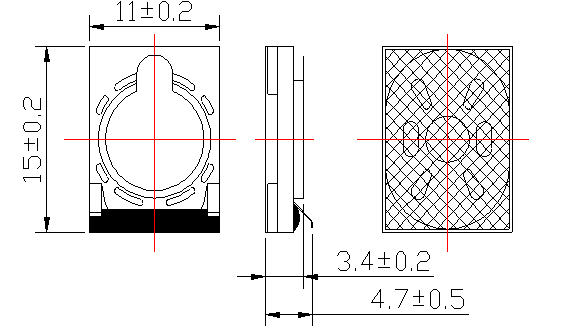

| 規格： | 15*11*3.2mm,8ohm/0.7W |
| 描述： | 彈片式喇叭 薄膜喇叭 超薄喇叭 miniature speaker |
|
CXS1511032-R08W0.7-F22 |
|
| Rated Input Power. | 0.7 W |
| Rated Impedance. | 8Ω ± 15% |

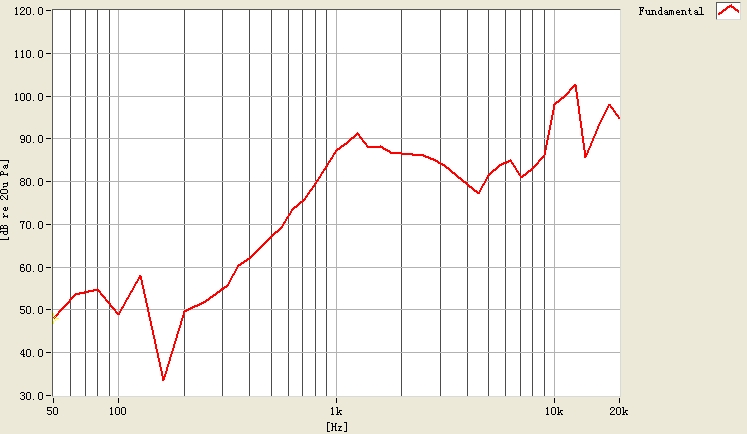

| Sound Pressure Level. | 87dB(0.1W/0.1m) ± 3 dB At AVE 0.8K 1.0K 1.2K 1.5K Hz |
| Resonance Frequency (Fo). | 950±20%Hz |
| Frequency Range. | F0~20kHz. |
