CXS1511035-R08W0.5-F2

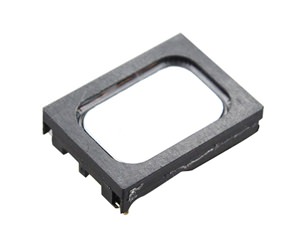

| 型號： | Miniature SPEAKER |

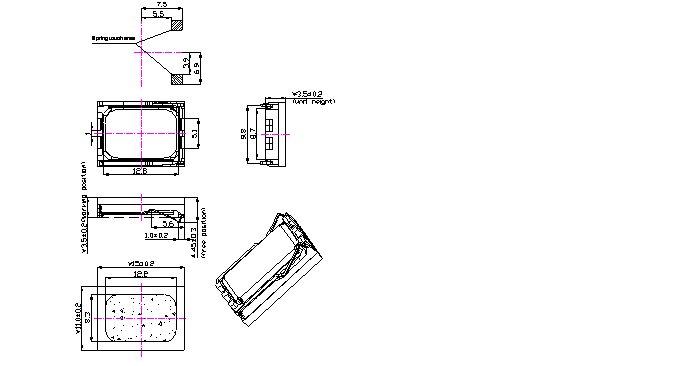

| 規格： | 15*11*3.5mm,8ohm/0.5W |
| 描述： | 彈片式喇叭 薄膜喇叭 超薄喇叭 miniature speaker |
|
CXS1511035-R08W0.5-F2 |
|
| Rated Input Power. | 0.5W |
| Rated Impedance. | 8Ω ± 15% |

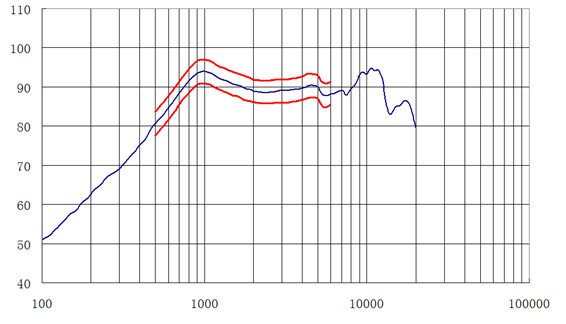

| Sound Pressure Level. | 87dB(0.5W/0.1m) ± 3 dB At 2.0K Hz |
| Resonance Frequency (Fo). | 500±20%Hz (in free air) 800±20%Hz (1.0cc box) |
| Frequency Range. | F0~20kHz. |
