CX5050017-12R(3.6V)-4000-F

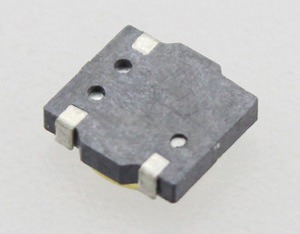

| 型號： | SMD BUZZER |
| 規格： | 5*5*1.7mm,3.36Vo-p,Freq.:4KHz |
| 描述： | SMD BUZZER External Drive Magnetic Buzzer mini buzzer 蜂鳴器 |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 4000 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 2~4 |  |
| 3 | Rated Voltage | Vo-p | 3.6 | |
| 4 | Current Consumption | mA | MAX.130 | at Rated Voltage |

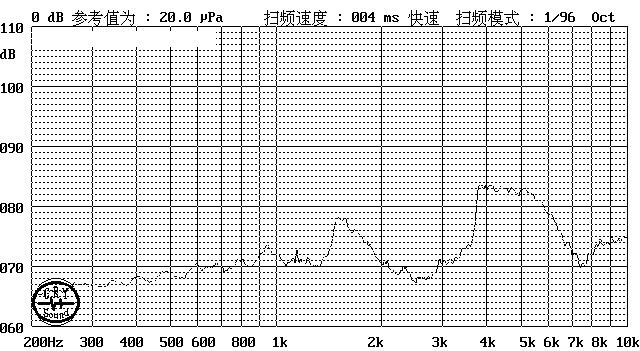

| 5 | Sound Pressure Level | dB | MIN. 75 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 12±3 | ||
| 7 | Weight (MAX) | gram | ||
| 8 | Housing Material | LCP( Black ) Top(Brass)) |

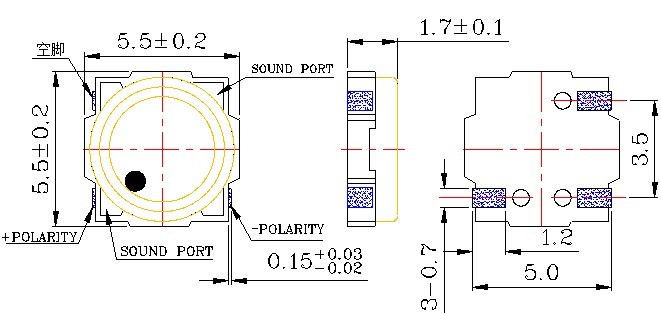

Unit :mm Tol: ±0.5
