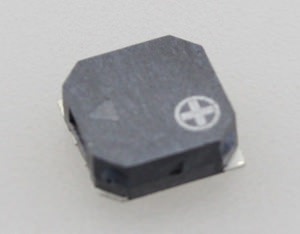

CX7575025-16R(3.6V)-2700-F
型號: SMD BUZZER
規格: 7.5*7.5*2.5mm,3.6Vo-p,freq:2.7KHz
描述: SMD BUZZER External Drive Magnetic Buzzer mini buzzer 蜂鳴器
No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2700 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 2~4
3 Rated    Voltage Vo-p 3.6
4 Current    Consumption mA MAX. 100 at    Rated Voltage
5 Sound Pressure Level dB MIN. 80 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   16±3
7 Weight (MAX) gram
8 Housing Material   LCP( Black )

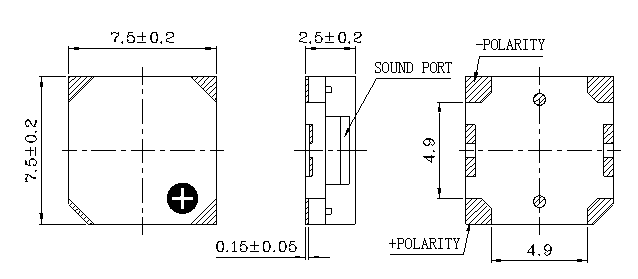

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
