CX1313065C-5V-2400-F
| 型號： | SMD BUZZER |
| 規格： | 13*13*6.5mm,5VDC,2.4KHz |
| 描述： | SMD BUZZER Self Drive Magnetic Buzzer mini buzzer 蜂鳴器 |
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | KHz | 2.4 ± 0.3 | ||
| 2 | Operating Voltage | VDC | 3~ 7 | 8~ 15 | |
| 3 | Rated Voltage | VDC | 5 | 12 | |
| 4 | Current Consumption | mA | MAX. 30 | at Rated Voltage | |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage | |
| 6 | Weight (MAX) | gram | |||
| 7 | Housing Material | PPS ( Black ) | |||

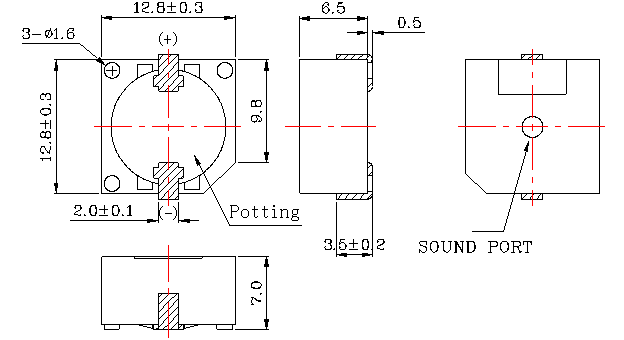

Unit :mm Tol: ±0.5
