CX9650

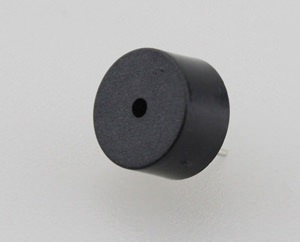

型號: Magnetic Buzzer
規格: OD9.6*5.0mm,5Vo-p,Freq.:2731Hz
描述: BUZZER External Drive Magnetic Buzzer
No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2731 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 3~ 7
3 Rated    Voltage Vo-p 5
4 Current    Consumption mA MAX. 80 at    Rated Voltage

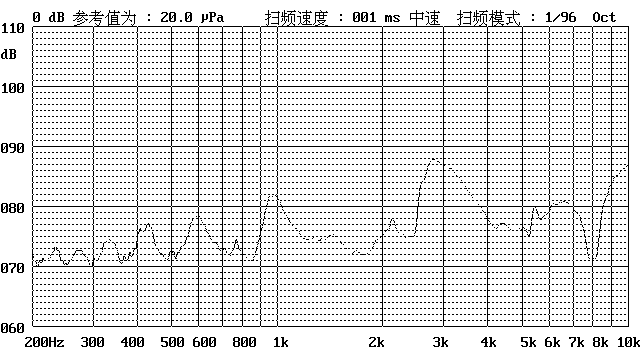

5 Sound Pressure Level dB MIN. 83 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   50±5
7 Weight (MAX) gram 0.8
8 Housing Material   PPO( Black )

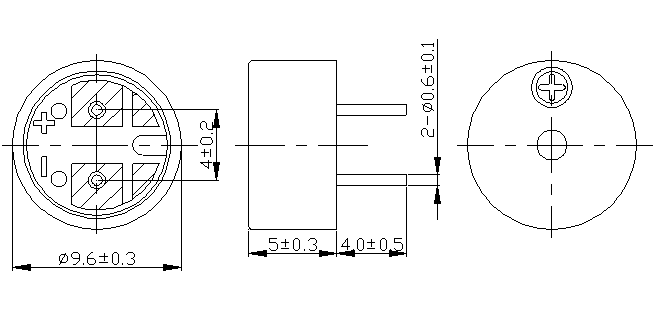

Unit :mm  Tol: ±0.5
