CX9650S
型號: Magnetic Buzzer
規格: OD9.6*5.0mm,3Vo-p,Freq.:2731Hz
描述: External Drive Magnetic Buzzer

A. SCOPE
   This specification applies magnetic buzzer ,  CX9650-50R(5V)-2731-F
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2731 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 2~ 4
3 Rated    Voltage Vo-p 3
4 Current    Consumption mA MAX. 60 at    Rated Voltage
5 Sound Pressure Level dB MIN. 85 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   18±3
7 Weight (MAX) gram 0.8
8 Housing Material   PPO( Black )

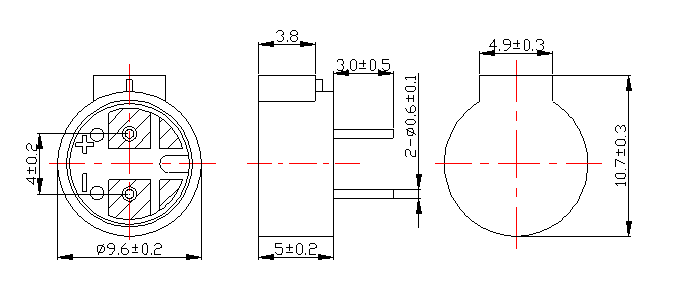

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
