CX12054

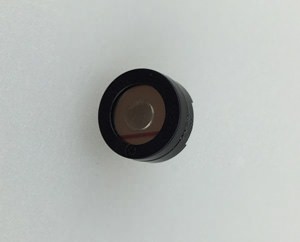

型號: Magnetic Buzzer
規格: OD12*5.4mm,1.5Vo-p,Freq.:2048Hz
描述: BUZZER, External Drive Magnetic Buzzer

A. SCOPE
   This specification applies magnetic buzzer ,  CX12054-42R(3.6V)-2048-F
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2048 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 2~ 4
3 Rated    Voltage Vo-p 3.6
4 Current    Consumption mA MAX. 50 at    Rated Voltage

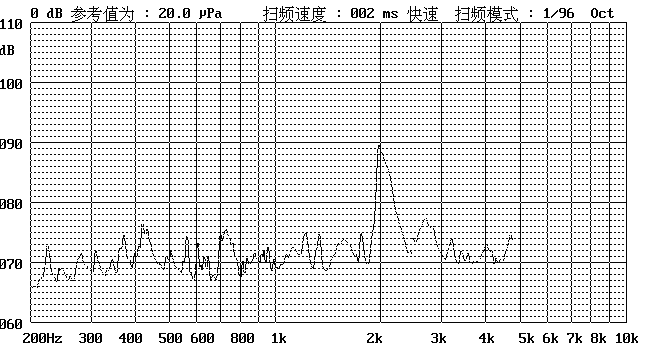

5 Sound Pressure Level dB MIN. 85 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   42±5
7 Weight (MAX) gram 1
8 Housing Material   PPO( Black )

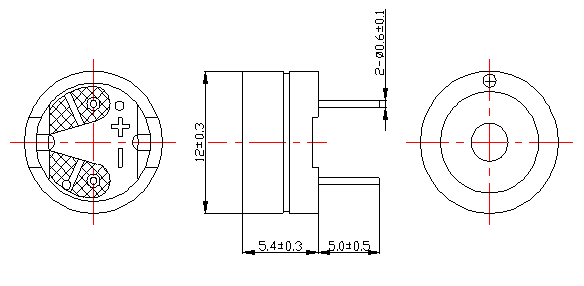

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
