繁體中文
CX12075

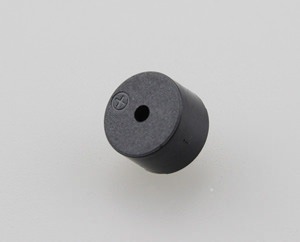

| 型號： | Magnetic Buzzer他激式蜂鳴器 |
| 規格： | OD12.0*7.5mm,5Vo-p,Freq.:2731Hz |
| 描述： | BUZZER,External Drive Magnetic Buzzer |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 2731 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 3~ 7 |  |
| 3 | Rated Voltage | Vo-p | 5.0 | |
| 4 | Current Consumption | mA | MAX. 60 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 40±5 | ||
| 7 | Weight (MAX) | gram | 1 | |
| 8 | Housing Material | PBT( Black ) |

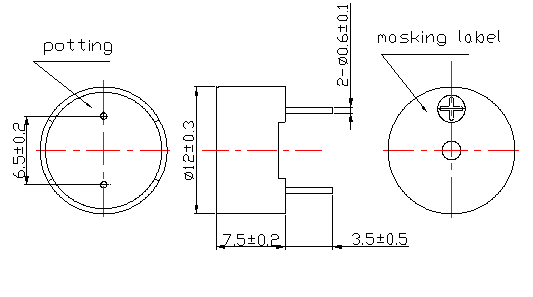

Unit :mm Tol: ±0.5
