CX12090
型號: Magnetic Buzzer
規格: OD12*9.0mm,5Vo-p,Freq.:2400Hz
描述: BUZZER, External Drive Magnetic Buzzer
No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2400 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 3~ 7
3 Rated    Voltage Vo-p 5
4 Current    Consumption mA MAX. 80 at    Rated Voltage
5 Sound Pressure Level dB MIN. 85 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   40±5
7 Weight (MAX) gram 1
8 Housing Material   PBT Black )

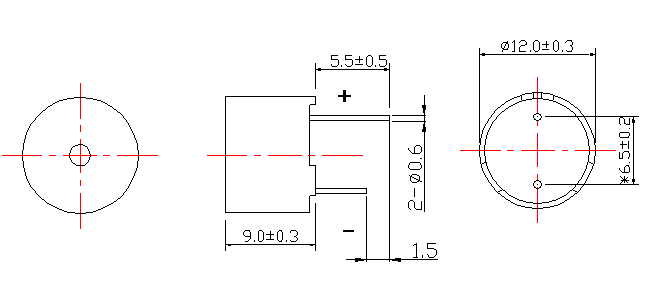

Unit :mm  Tol: ±0.5
