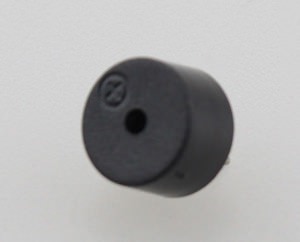

CX9055C
型號: Magnetic BUZZER
規格: OD9*5.5mm,5VDC,Freq.:2.7KHz
描述: BUZZER, self Drive Magnetic Buzzer
No. Item Unit Specification Condition
1 Oscillation Frequency KHz 2.7 ±    0.3
2 Operating Voltage VDC 3~ 7
3 Rated    Voltage VDC 5
4 Current    Consumption mA MAX. 30 at    Rated Voltage
5 Sound Pressure Level dB MIN. 82 at 10cm at Rated Voltage
6 Weight (MAX) gram 0.8
7 Housing Material   PBT ( Black )

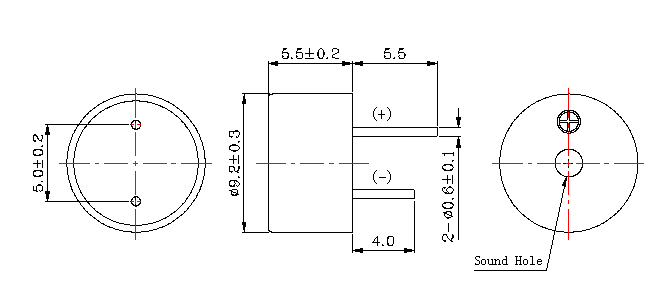

Unit :mm  Tol: ±0.5
