CX12075C
型號: Magnetic BUZZER
規格: OD12*7.5mm,5VDC,Freq.:2.3KHz
描述: BUZZER, self Drive Magnetic Buzzer
No. Item Unit Specification Condition
1 Oscillation Frequency KHz 2.3± 0.3 3.1 ±    0.3
2 Operating Voltage VDC 3~ 7
3 Rated    Voltage VDC 5



4 Current    Consumption mA MAX. 30 at    Rated Voltage
5 Sound Pressure Level dB MIN. 85 at 10cm at Rated Voltage
6 Weight (MAX) gram
7 Housing Material   PBT ( Black )

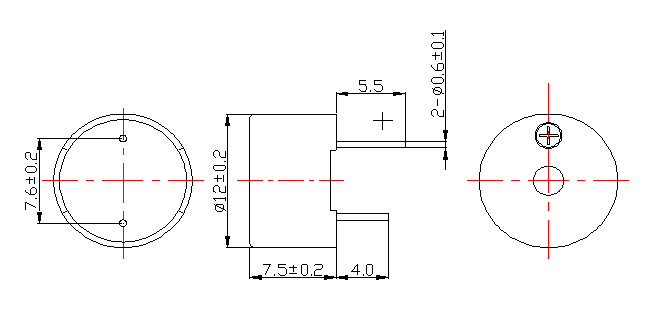

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
