CX12095C

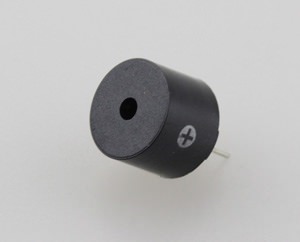

型號: Magnetic BUZZER
規格: OD12*9.5mm,5VDC,Freq.:2.3KHz
描述: BUZZER, self Drive Magnetic Buzzer
No. Item Unit Specification Condition
1 Oscillation Frequency KHz 2.3 ±    0.3
2 Operating Voltage VDC 3~ 7 8~ 15 18~ 28
3 Rated    Voltage VDC 5 12 24
4 Current    Consumption mA MAX. 30 MAX. 30 MAX. 30 at    Rated Voltage
5 Sound Pressure Level dB MIN. 85 MIN. 85 MIN. 85 at 10cm at Rated Voltage
6 Weight (MAX) gram
7 Housing Material   PBT ( Black )

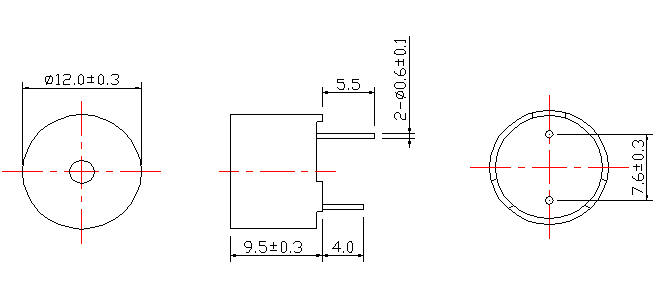

Unit :mm  Tol: ±0.5
