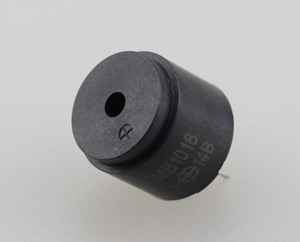

CX1614C
| 型號： | 電磁式蜂鳴器 |
| 規格： | OD16*14mm,12VDC,Freq.:2.3KHz |
| 描述： | BUZZER, self Drive Magnetic Buzzer |
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | KHz | 2.3 ± 0.3 | 4.0 ± 0.3 | |
| 2 | Operating Voltage | VDC | 8~ 15 | ||
| 3 | Rated Voltage | VDC | 12 | ||
| 4 | Current Consumption | mA | MAX. 30 | at Rated Voltage | |
| 5 | Sound Pressure Level | dB | MIN. 90 | at 10cm at Rated Voltage | |
| 6 | Weight (MAX) | gram | |||
| 7 | Housing Material | PPO ( Black ) | |||

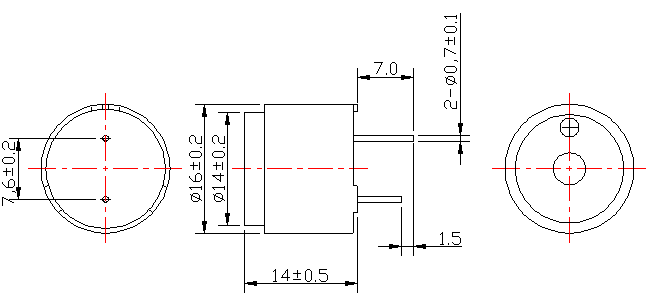

Unit :mm Tol: ±0.5
