CXP14040

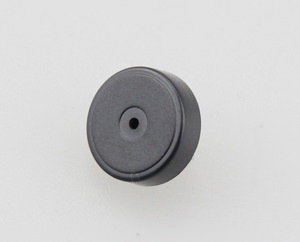

型號: PIEZO BUZZER蜂鳴器
規格: OD14.0*4.0mm,3Vp-p,Freq.:4KHz
描述: PIEZO BUZZER,External Drive Piezo Buzzer

A. SCOPE
     This specification applies piezo buzzer,
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 4000 square wave
2 Operating Voltage Vp-p 1 ~25
3 Rated    Voltage Vp-p 3
4 Current    Consumption mA MAX. 5 at Rated    Voltage

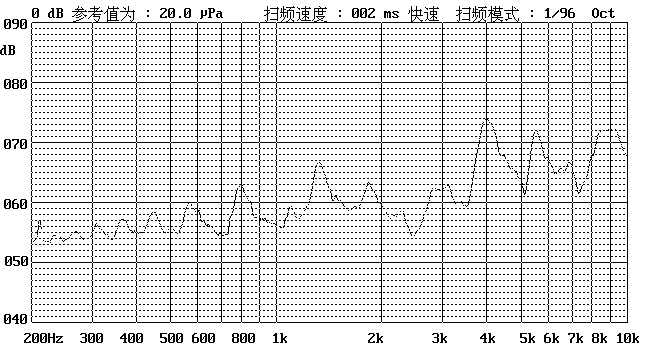

5 Sound Pressure Level dB MIN. 70 at 10cm    at Rated Voltage
6 Electrostatic Capacity pF 12000±30% at 100Hz    1V
7 Housing Material   PPO( Black )

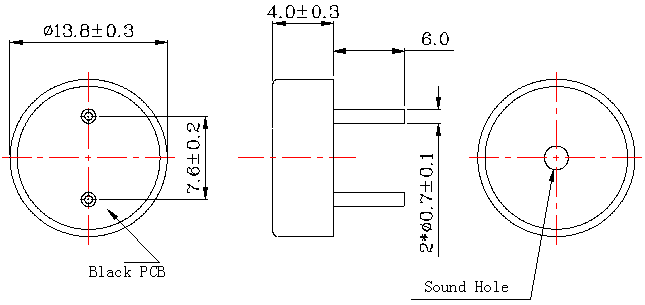

C. APPEARANCE DRAWING



Unit :mm  Tol: ±0.5
