CXP23160C
| 型號： | 壓電式蜂鳴器 |
| 規格： | OD23*16mm,12VDC,:3.2KHz |
| 描述： | PIEZO BUZZER,Self Drive Piezo Buzzer蜂鳴器 |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | Hz | 3200±500 | square wave | |
| 2 | Operating Voltage | Vdc | 3 ~20 | 3 ~28 | |
| 3 | Rated Voltage | Vdc | 12 | 24 | |
| 4 | Current Consumption | mA | MAX. 10 | MAX. 15 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 90 | MIN. 95 | at 10cm at Rated Voltage |
| 6 | Housing Material | PPO( Black ) | |||

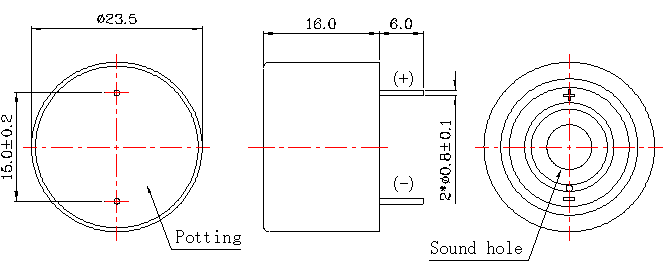

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
