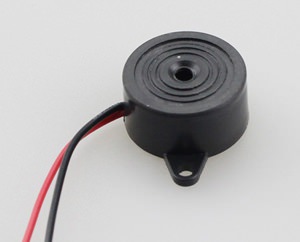

CXP23120C-W
型號: 壓電式蜂鳴器
規格: OD23*12mm,6VDC,Freq.:3.5KHz
描述: PIEZO BUZZER,Self Drive Piezo Buzzer蜂鳴器

A. SCOPE
     This specification applies piezo buzzer,
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 3500±500 square wave
2 Operating Voltage Vdc 3 ~9
3 Rated Voltage Vdc 6
4 Current Consumption mA MAX. 12 at Rated Voltage
5 Sound Pressure Level dB MIN. 90 at 10cm at Rated Voltage
6 Housing Material   ABS ( Black )

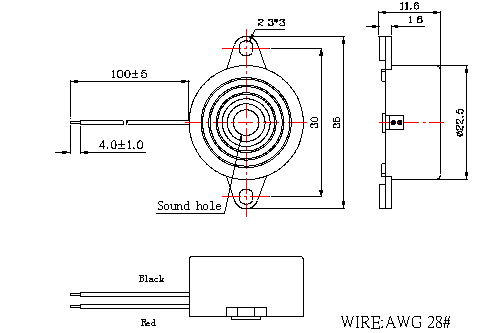

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
