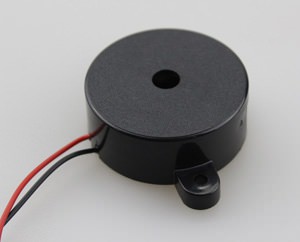

CXP42160C-W
| 型號： | 壓電式蜂鳴器 |
| 規格： | OD42*16mm,12VDC,Freq.:2800Hz |
| 描述： | PIEZO BUZZER,Self Drive Piezo Buzzer |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | Hz | 2800±500 | square wave | |
| 2 | Operating Voltage | Vdc | 3 ~28 | 3 ~28 | |
| 3 | Rated Voltage | Vdc | 12 | 24 | |
| 4 | Current Consumption | mA | MAX.15 | MAX.25 | at Rated Voltage |

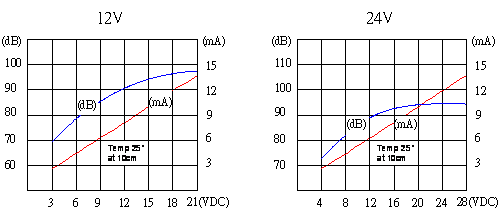

| 5 | Sound Pressure Level | dB | MIN. 88 | MIN. 95 | at 30cm at Rated Voltage |
| 6 | Housing Material | ABS ( Black ) | |||
| Tone Nature | Slow/Fast pulse, Continuous | ||||

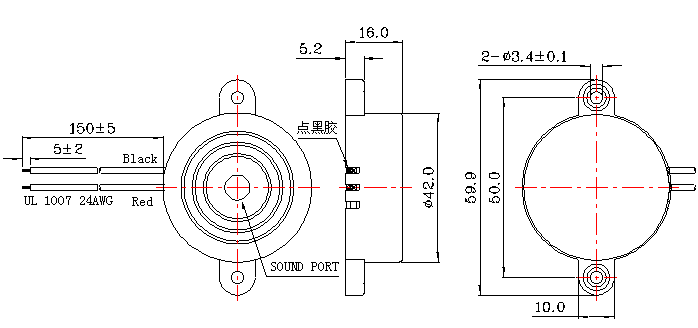

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
