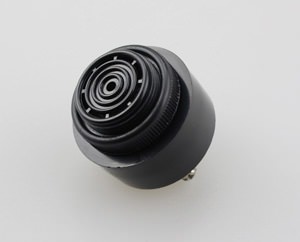

CXP4330C-DC
| 型號： | 壓電式蜂鳴器 |
| 規格： | OD43*30mm,24VDC,Freq.:2.9KHz |
| 描述： | PIEZO BUZZER,Self Drive Piezo Buzzer |
| tion Frequency | Hz | 2900±500 | square wave | |
| 2 | Operating Voltage | Vdc | 5 ~28 | |
| 3 | Rated Voltage | Vdc | 24 | |
| 4 | Current Consumption | mA | MAX.20 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 90 | at 30cm at Rated Voltage |
| 6 | Housing Material | ABS ( Black ) | ||
| 7 | Tone Nature | Fast Pulse |

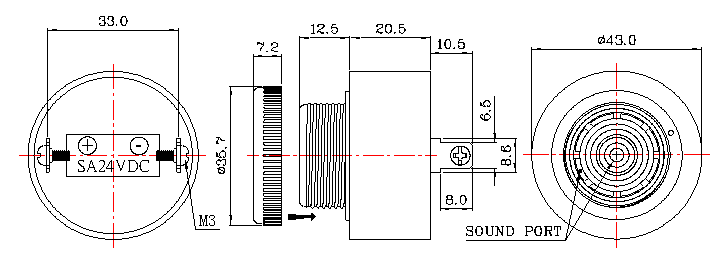

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
