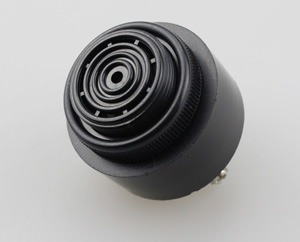

CXP4330C-AC
| 型號： | 壓電式蜂鳴器 |
| 規格： | OD43*30mm,220Vac,Freq.:2.9KHz |
| 描述： | PIEZO BUZZER,Self Drive Piezo Buzzer蜂鳴器 |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 2900±500 | square wave |
| 2 | Operating Voltage | VAC | 150 ~260 | |
| 3 | Rated Voltage | VAC | 220 | |
| 4 | Current Consumption | mA | MAX.20 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 90 | at 30cm at Rated Voltage |
| 6 | Housing Material | ABS ( Black ) | ||
| 7 | Tone Nature | Fast Pulse |

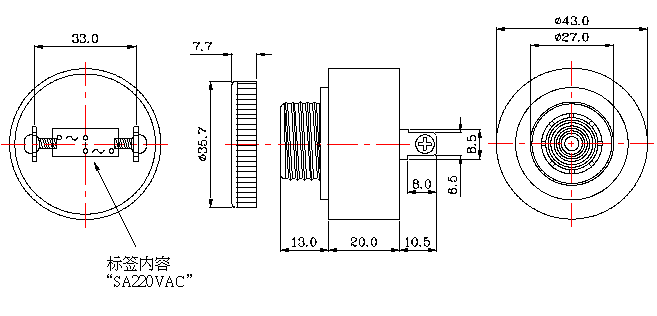

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
